Products
Eta-ON is expandable to any applications. If you want to power your products without wires, Contact Us!
Eta-ON
The next generation
of wireless power transfer technology
of wireless power transfer technology
-
High Power Charging
High Efficiency Power Amplifier
-
Robust to Misalignment
Mutual Inductance Tracking
-
Real-time Protection
OVP, OCP, OTP algorithm
-
Foreign Object Detection
AI based FOD algorithm
-
Waterproof & Dustproof
IP66 (Tx & Rx coil module)
Applications
Roadmap
Roadmap

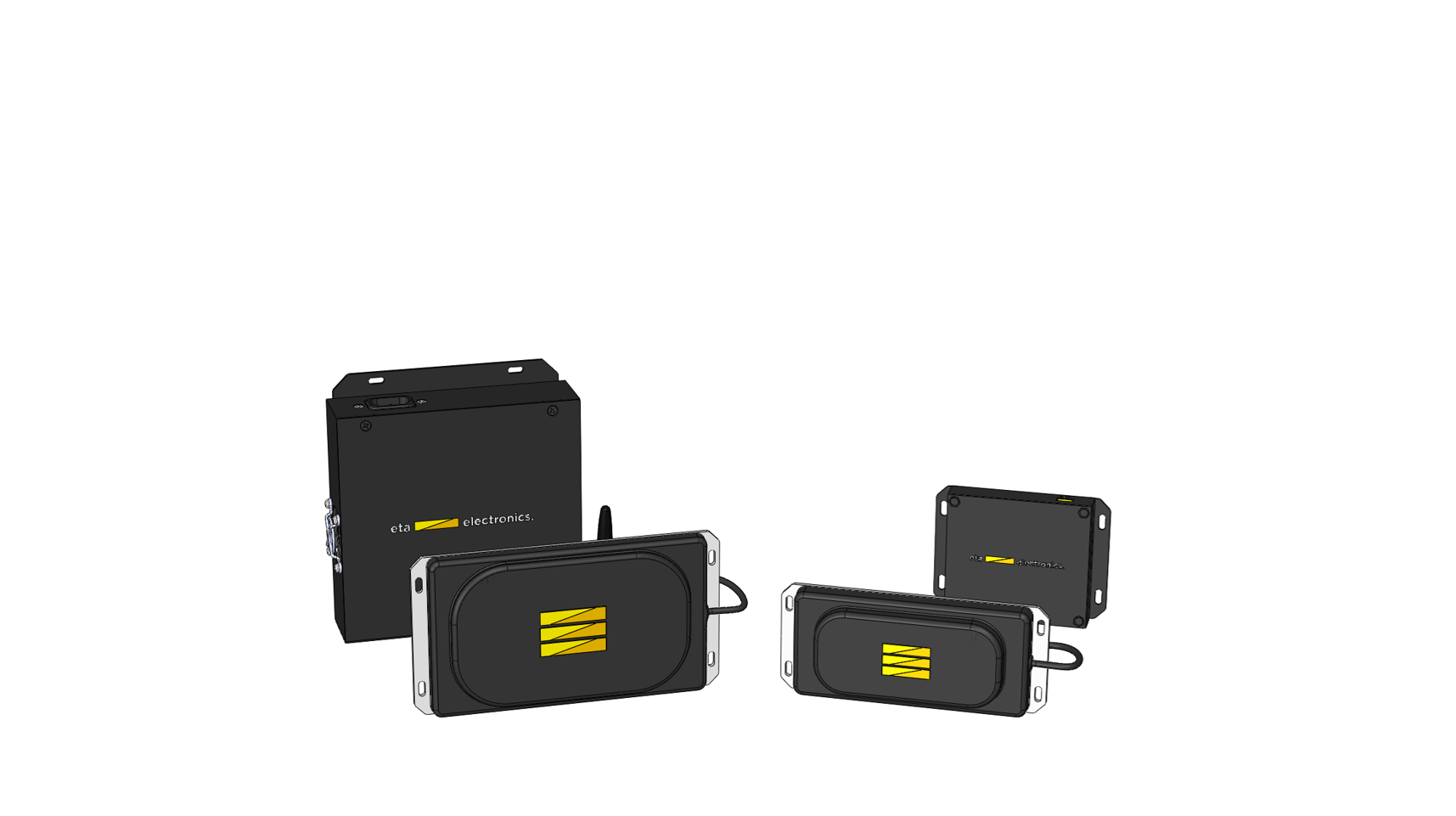

CT-200
1
Tx control module
155 mm X 150 mm X 42 mm
3
Rx control module
110 mm X 83 mm X 18 mm
2
Tx coil module
200 mm X 106 mm X 18 mm
4
Rx coil module
168 mm X 70 mm X 24.5 mm
| Transmitter | CT-200 | |||
|---|---|---|---|---|
| System | Frequency | 79 - 90 kHz | ||
|
Charging Efficiency (Max.) |
88 % (DC to Battery) | |||
| Charging Range |
0 – 40 mm distance offset ±20 mm x-axis offset ±20 mm y-axis offset |
|||
| Receiver | CR-24-05 | CR-36-04 | CR-48-03 | |
|
Charging Voltage Range |
15 - 29 V | 25 - 42 V | 38 - 53.6 V | |
|
Charging Current (Max.) |
5 A | 4 A | 3 A | |
|
Charging Power (Max.) |
145 W | 168 W | 160.8 W | |

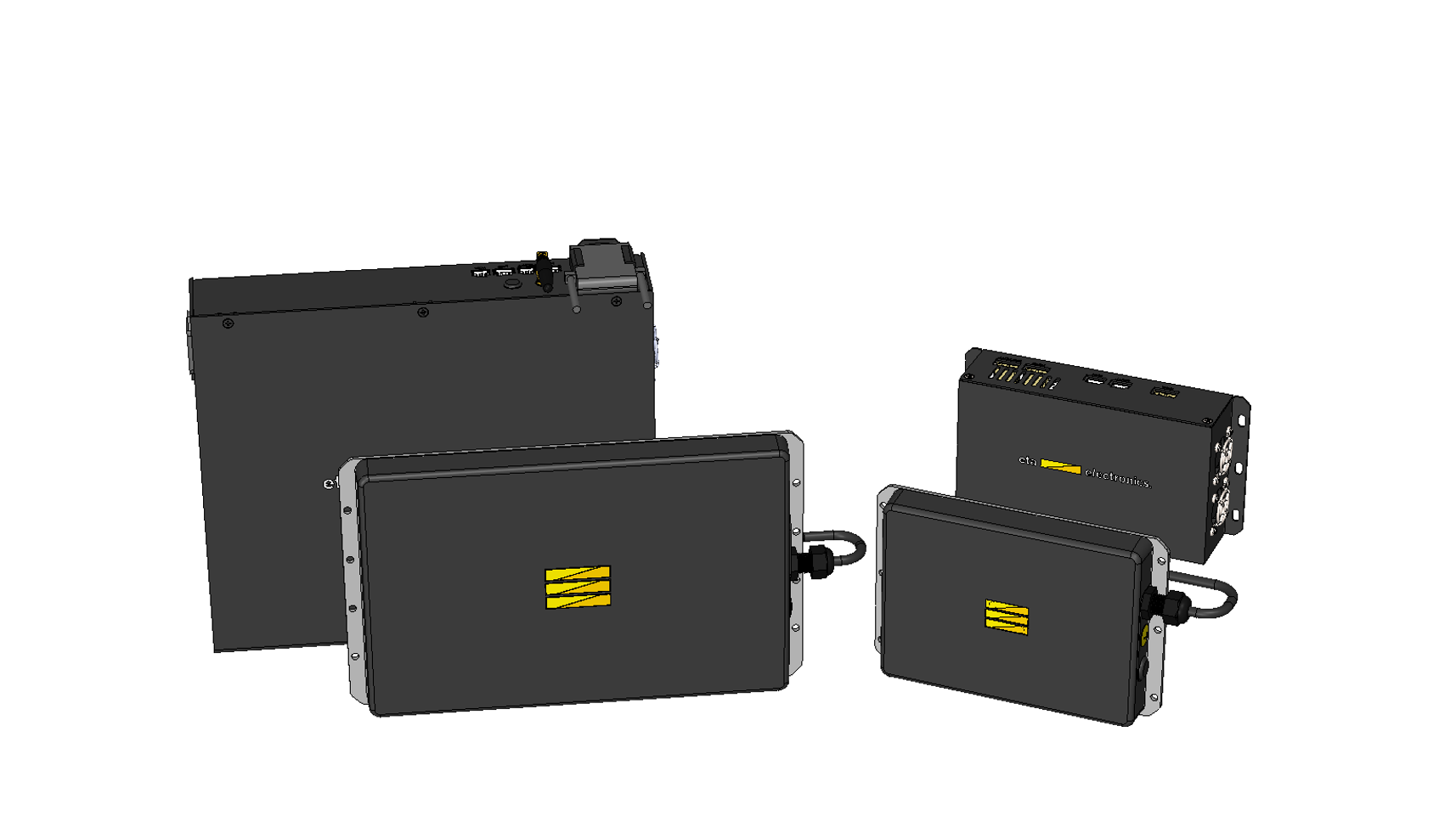

DT-800
1
Tx control module
300 mm X 254 mm X 59 mm
3
Rx control module
198 mm X 103 mm X 47 mm
2
Tx coil module
304.5 mm X 185 mm X 28 mm
4
Rx coil module
202.5 mm x 135.12 mm X 28 mm
| Transmitter | DT-800 | |||
|---|---|---|---|---|
| System | Frequency | 79 - 90 kHz | ||
|
Charging Efficiency (Max.) |
88 % (DC to Battery) | |||
| Charging Range |
0 – 50 mm distance offset ±70 mm x-axis offset ±40 mm y-axis offset |
|||
| Receiver | DR-24-10 | DR-36-10 | DR-48-10 | |
|
Charging Voltage Range |
15 - 29 V | 25 - 42 V | 38 - 53.6 V | |
|
Charging Current (Max.) |
10 A | 10 A | 10 A | |
|
Charging Power (Max.) |
290 W | 420 W | 536 W | |

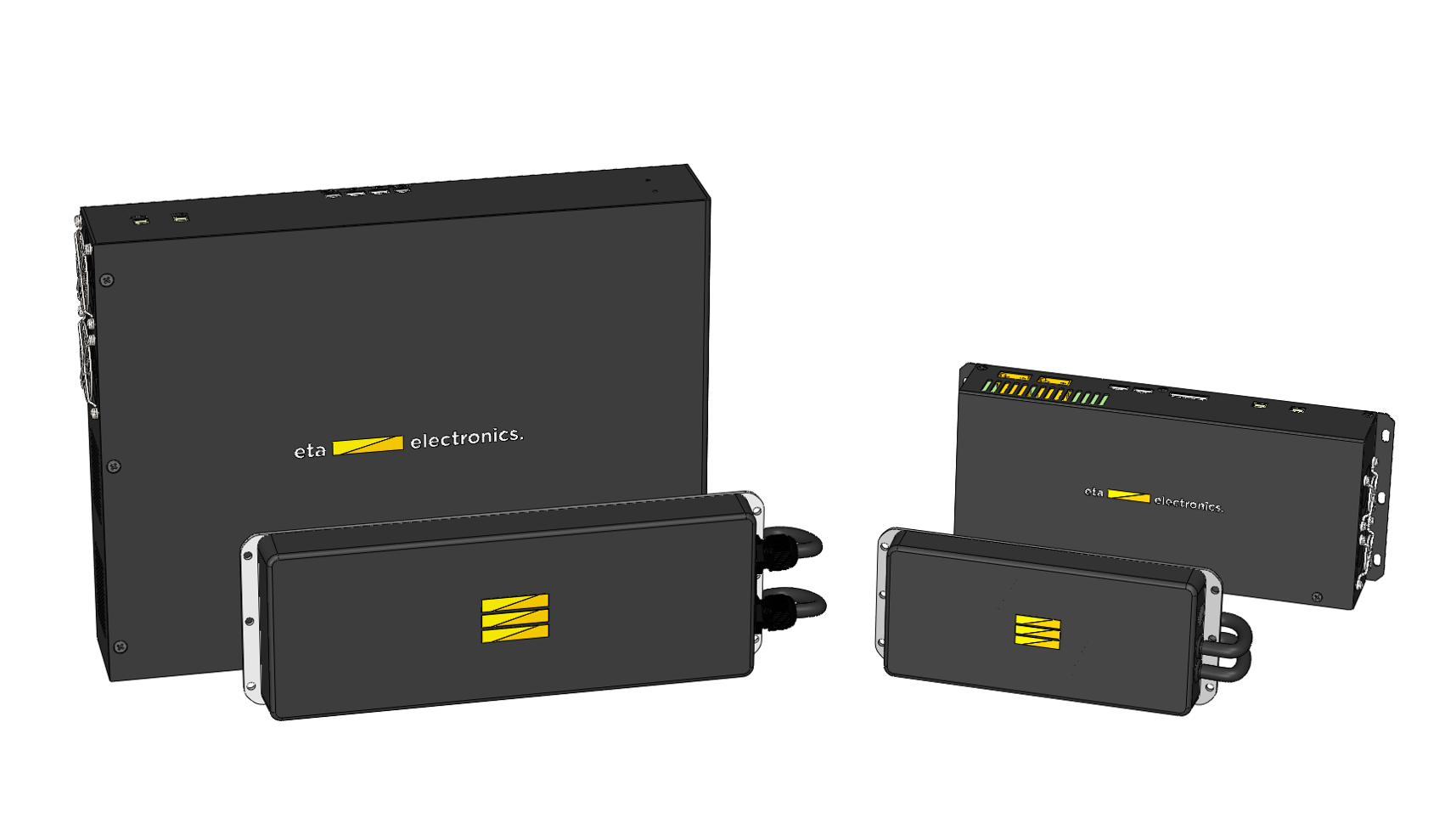

DT-3000
1
Tx control module
395 mm X 300.8 mm X 70 mm
3
Rx control module
289.2 mm X 119 mm X 50.6 mm
2
Tx coil module
335.4 mm X 117 mm X 33 mm
4
Rx coil module
229.5 mm x 96.5 mm X 27.5 mm
| Transmitter | DT-3000 | |||
|---|---|---|---|---|
| System | Frequency | 79 - 90 kHz | ||
|
Charging Efficiency (Max.) |
88 % (DC to Battery) | |||
| Charging Range |
0 – 50 mm distance offset ±40 mm x-axis offset ±30 mm y-axis offset |
|||
| Receiver | DR-40A | |||
|
Charging Voltage Range |
15 - 58.8 V | |||
|
Charging Current (Max.) |
40 A | |||
|
Charging Power (Max.) |
2,352 W | |||
